Everything needed to fire a laser diode and everything needed to prove it still works. Pulse driver boards, high-temperature burn-in boards, pulse power meters, a 1 ns AEC-Q gate driver and the micro-modules behind them. Our least visible line and our most repeat-purchase one — because the customers are other laser manufacturers.
- 905 nm pulse driver boards and 1535 nm erbium-glass driver modules
- High-temperature burn-in boards for life testing
- Pulse power meter for peak-power verification
- NCD1020B AEC-Q qualified GaN / Si MOSFET low-side driver, 1 ns min pulse width
- NCD3081M / NCD3091M laser driver micro-modules
- Laser pulse signal generator and multi-wavelength RGB drivers
Configurations
Expand a group to see the model table. All powers are peak pulse power at 25 °C unless the table states otherwise.
Boards
Driver and reliability-test boards, supplied populated or as bare designs.
| Product | Function | Key characteristics | Typical user |
|---|---|---|---|
| LZ-905-PD01 | Generates the nanosecond drive pulse for 905 nm emitter assemblies (V2.0 industrial release); 70 A peak, high-speed MOSFET output | Matched to PLD905 series; 900 – 1000 nm class | Rangefinder and LiDAR module builders |

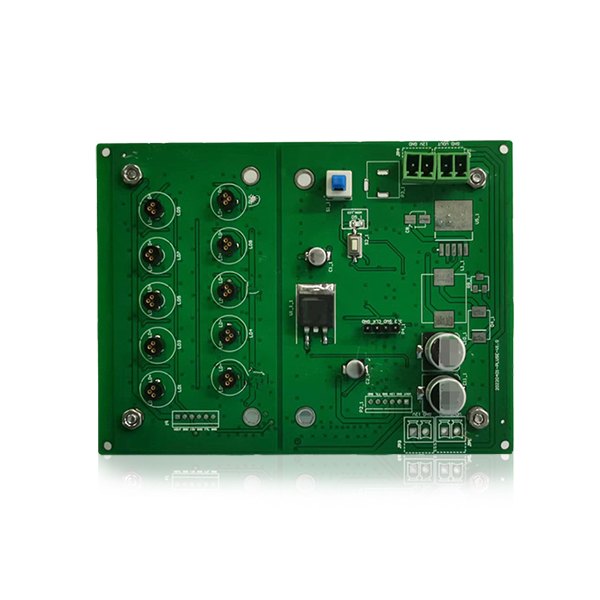

| High-temperature burn-in board | Life and burn-in testing of laser diodes | Multi-position sockets; high-temperature operation | Laser diode manufacturers |
| Pulse power meter | Peak power measurement of narrow pulses | Designed for nanosecond-class pulsed emitters | Test and incoming-inspection departments |

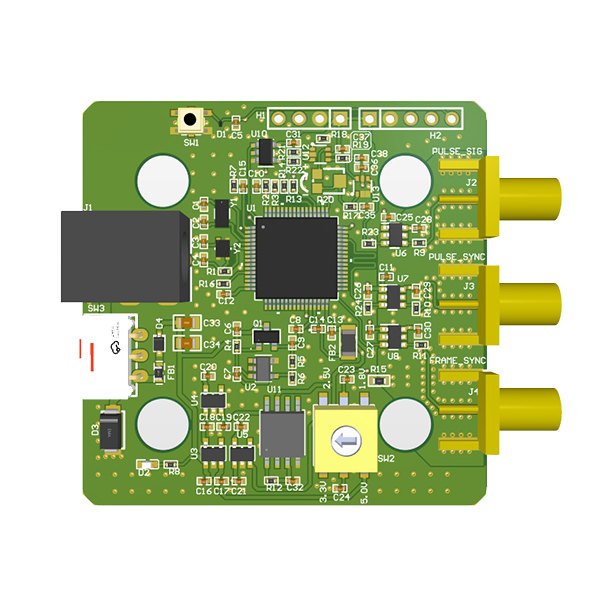

| Laser pulse signal generator | Reference pulse generation for driver and detection chains | Adjustable pulse timing | R&D and production test |
Integrated circuits and micro-modules
The gate driver and driver micro-modules that sit at the heart of a nanosecond pulse chain.
| Model | Type | Key characteristics | Applications |
|---|---|---|---|

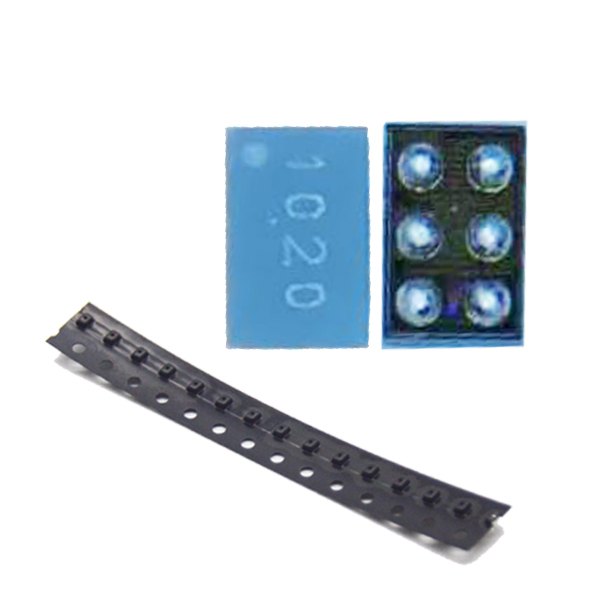

| NCD1020B | GaN / Si MOSFET low-side gate driver (automotive qualified) | 1 ns minimum input pulse width; propagation delay 3 ns typ / 4.5 ns max; 5 V typical; under-voltage lockout and thermal protection; 1.28 × 0.84 × 0.60 mm; 260 µm solder balls | LiDAR, time-of-flight laser drivers, power converters, GaN synchronous rectifiers |
| NCD3081M | Laser driver circuit micro-module | Compact drive module | Laser diode driving in space-constrained assemblies |
| NCD3091M | Laser driver circuit micro-module | Compact drive module | Laser diode driving in space-constrained assemblies |
| 1535 nm erbium-glass laser driver module | Dedicated driver for LZ1535 erbium-glass lasers | Matched to the LZ1535 pulse and energy range | Rangefinding and designation systems |
| Single-colour CW driver module | CW driver for fibre-coupled single-colour sources | 5 V DC, digital modulation, 50:1 polarization ratio | Bio-instrumentation, spectroscopy |
| RGB multi-wavelength fibre-coupled driver | Multi-channel driver for combined-wavelength engines | Independent channel control | Multi-wavelength light engines |
Product views
Datasheets
These variants have a formal specification document, issued as a LumeLiDAR-branded PDF. Click a variant to request it — we will send it back with the quotation.
Typical applications
Where this family is usually designed in:
Send us the specification you need to hit.
Wavelength, peak power, package and annual volume is usually enough for us to quote — and to say whether a sample is available from stock.
