Close-up of a rotating LiDAR sensor head, its glass aperture reflecting a faint cyan glint, on a city street at dusk.
905 nm pulsed emitterbehind the aperture of the scanning head

Application

LiDAR & 3D Sensing

905 nm pulsed emitters, VCSEL arrays and APDs — the transmit and receive path inside time-of-flight modules.

See the LiDAR emitters →
A rugged handheld laser rangefinder resting on a mossy rock at dusk, its multi-coated objective lens catching a faint teal glint.
905 nm pulsed emitterbehind the objective lens

Application

Laser Rangefinders & Hunting Optics

The highest-volume 905 nm socket in the world — plastic and metal TO56 emitters, pin-compatible with the OSRAM SPLPL90 family.

See the rangefinder emitters →
A pair of industrial through-beam photoelectric sensors facing each other across an automated conveyor line.
905 nm emitter diodetransmitter aperture of the through-beam pair

Application

Industrial Photoelectric Sensors

Standard 905 nm parts for distance sensors, light curtains and safety scanners — long qualification, ten-year repeat business.

See the sensor emitters →
Close-up of a terrestrial laser scanner head on its tripod, standing on open hillside at blue hour.
905 nm emitter stackbehind the blue scan window

Application

Surveying, Mapping & Airborne LiDAR

Multi-stripe emitters up to 600 W and low-drift parts for terrestrial scanners and airborne mapping payloads.

See the high-power emitters →
A weatherproof traffic sensor housing on a roadside pole at night, its optical window catching a cyan reflection.
905 nm emitter and APDbehind the weatherproof lens

Application

Traffic Enforcement & Perimeter Security

Emitters and receivers for laser speed guns, traffic scanners and perimeter intrusion detection.

See the emitters and APDs →
An airborne electro-optical gimbal turret under the fuselage of an unmarked survey aircraft at dusk.
1535 nm eye-safe sourceinside the EO turret

Application

Defense & Aerospace EO

Eye-safe 1550 nm and 1535 nm erbium-glass sources plus high-gain APDs for designation and EO payloads.

See the eye-safe sources →
A portable TDLAS gas analyser aimed at a stainless steel pipe flange at an industrial plant at night.
DFB source and detectorin the analyser optical path

Application

Gas Detection & TDLAS

DFB sources from 760 nm to 1742 nm with matched photodetectors — the complete optical core of a TDLAS instrument.

See the DFB sources →
A fibre-coupled laser light engine on a laboratory bench, its output glowing with cyan excitation light.
Fibre-coupled light engineat the glowing FC/APC output

Application

Medical, Bio & Analytical Instrumentation

Turnkey fibre-coupled light engines with TEM00 output and M² ≤ 1.2 — flow cytometry, confocal microscopy, Raman.

See the light engines →
Illustrative imagery

Home / Products

Product catalogue

Twelve families covering 375 nm to 1742 nm and 1 mW to 600 W. Search by wavelength, package or function, or scan the whole catalogue. Every specification shown is taken from the manufacturer's released data.

905 nm Pulsed Laser Diodes — LumeLiDAR product photo

905 nm Pulsed Laser Diodes

PLD905 series · EEL edge emitters

The workhorse of time-of-flight.

View specifications → 52 part numbers
VCSEL Arrays · 850 / 905 / 940 nm — LumeLiDAR product photo

VCSEL Arrays · 850 / 905 / 940 nm

PLD850 / PLD905 / PLD940 · MV series

Addressable-emitter VCSELs from a single 5 mW emitter up to a 1273-emitter array delivering 6 W.

View specifications → 19 part numbers · availability on enquiry
APD Avalanche Photodiodes — LumeLiDAR product photo

APD Avalanche Photodiodes

TO46 / LCC · 905 nm, 650 nm and 1550 nm

The receive half of the link.

View specifications → 12 part numbers
1550 nm Eye-Safe Pulsed Lasers — LumeLiDAR product photo

1550 nm Eye-Safe Pulsed Lasers

PLD1550 series · TO9 collimated

Eye-safe wavelength operation at 15 W and 30 W peak, collimated in a TO9 package.

View specifications → 5 part numbers
Single-Emitter & COB Laser Diodes — LumeLiDAR product photo

Single-Emitter & COB Laser Diodes

PLD808 / PLD940 · FL-FM01 · LZ mounts

Continuous-wave single emitters from 760 nm to 1064 nm, supplied as bare TO56 cans, as 10–12 W high-efficiency bars for pumping, or as COB arrays placed on a customer board to ±10 µm.

View specifications → 7 part numbers · availability on enquiry
1535 nm Erbium-Glass Lasers — LumeLiDAR product photo

1535 nm Erbium-Glass Lasers

LZ1535 series · 10 µJ to 1 mJ

Passively Q-switched erbium-glass microchip lasers in a rugged, hermetically sealed package.

View specifications → 11 part numbers
Fibre-Coupled Lasers & Light Engines — LumeLiDAR product photo

Fibre-Coupled Lasers & Light Engines

LZFL series · 375 – 1550 nm

Single-mode, multimode and polarization-maintaining pigtailed sources, up to five wavelengths combined into one output port.

View specifications → 43 part numbers
High-Power Fibre-Coupled Laser Bars — LumeLiDAR product photo

High-Power Fibre-Coupled Laser Bars

FB series · 808 / 830 / 915 / 940 / 976 / 1064 nm

105 µm core, NA 0.22 fibre-coupled bars delivering 10 W to 45 W from 808 nm to 1064 nm.

View specifications → Made to order · availability on enquiry

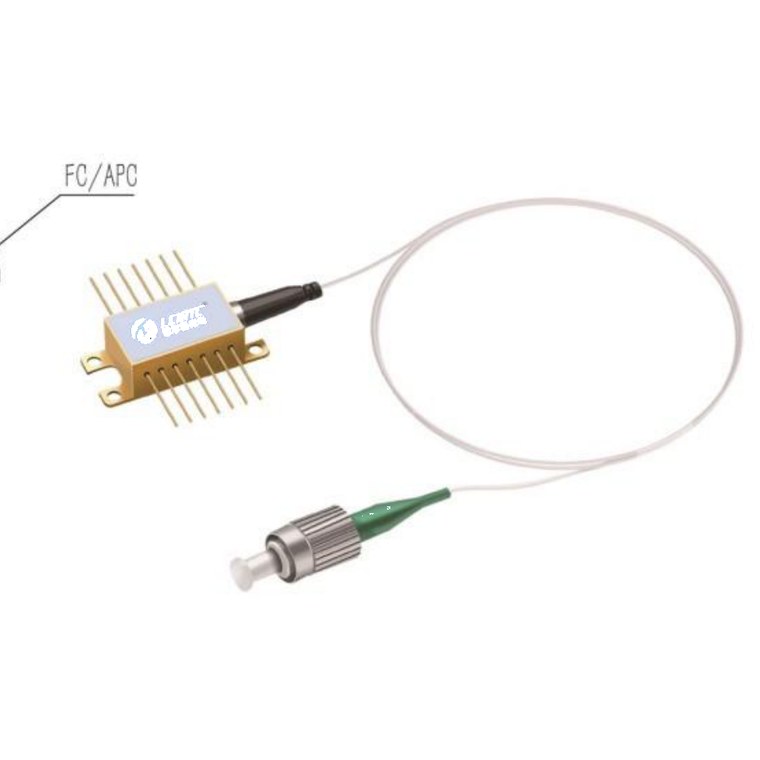

DFB Butterfly Lasers — LumeLiDAR product photo

DFB Butterfly Lasers

1064 nm & 1550 nm distributed-feedback

Narrow-linewidth distributed-feedback lasers in a 14-pin butterfly package with an FC/APC pigtail.

View specifications → Made to order · availability on enquiry
Gas Sensing · TDLAS Sources & Detectors — LumeLiDAR product photo

Gas Sensing · TDLAS Sources & Detectors

DFB / VCSEL 760 – 1742 nm + matched photodetectors

A complete optical core for tunable-diode laser absorption spectroscopy: a DFB or VCSEL source on the exact absorption line of the target gas, a spectrally matched photodetector, and a turnkey methane sensor module for customers who would rather buy the finished optical assembly than build one..

View specifications → Made to order · availability on enquiry
Laser Drivers & Test Systems — LumeLiDAR product photo

Laser Drivers & Test Systems

NCD drivers, pulse boards, burn-in and metrology

Everything needed to fire a laser diode and everything needed to prove it still works.

View specifications → 4 part numbers
Collimation & Fibre-Optic Assemblies — LumeLiDAR product photo

Collimation & Fibre-Optic Assemblies

FAC services · patch cords · collimators · combiners

The engineering services that turn a bare die into a usable beam.

View specifications → 12 part numbers · availability on enquiry
Not sure which family fits? Send us the part number you use today and the application, and we will map it to the closest LumeLiDAR device — and tell you honestly if there is no good match. Open the cross-reference guide.

Need a datasheet, a sample or a price?

Tell us the part number and the annual volume. We will confirm availability, lead time and whether a pin-to-pin swap is possible.

Request a quote Contact us
